Howo TX 8x4 Tipper Truck
  • Specification

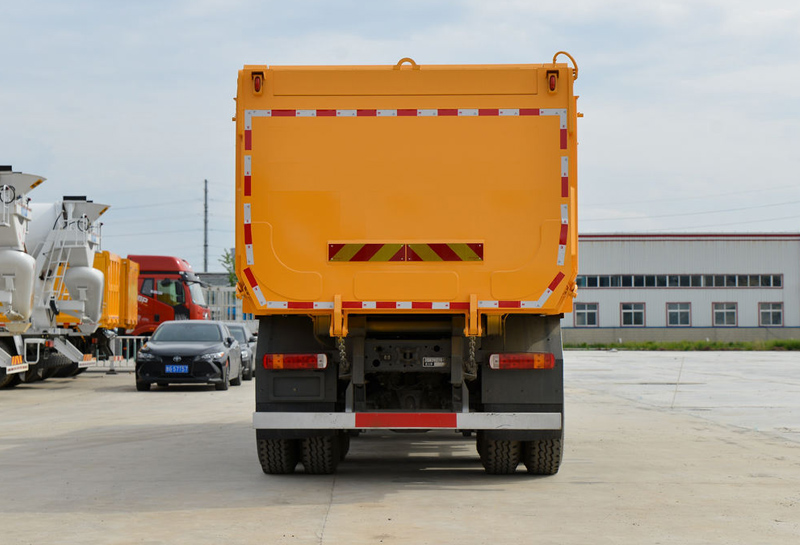

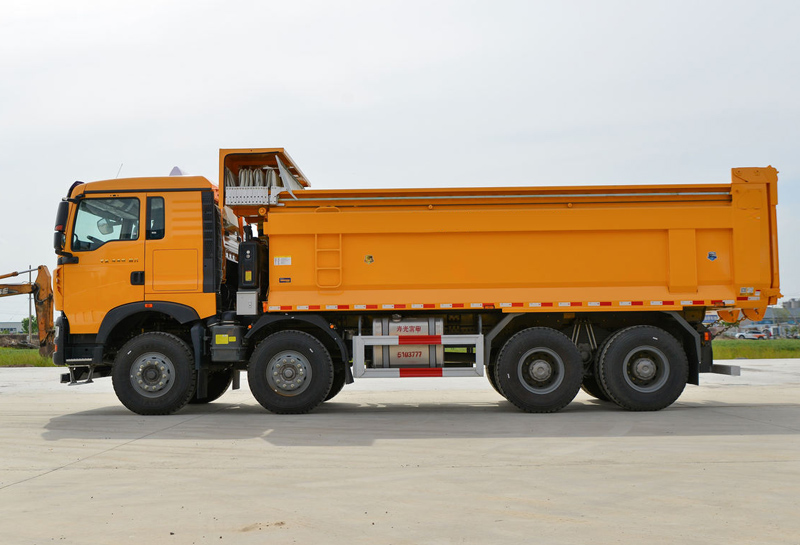

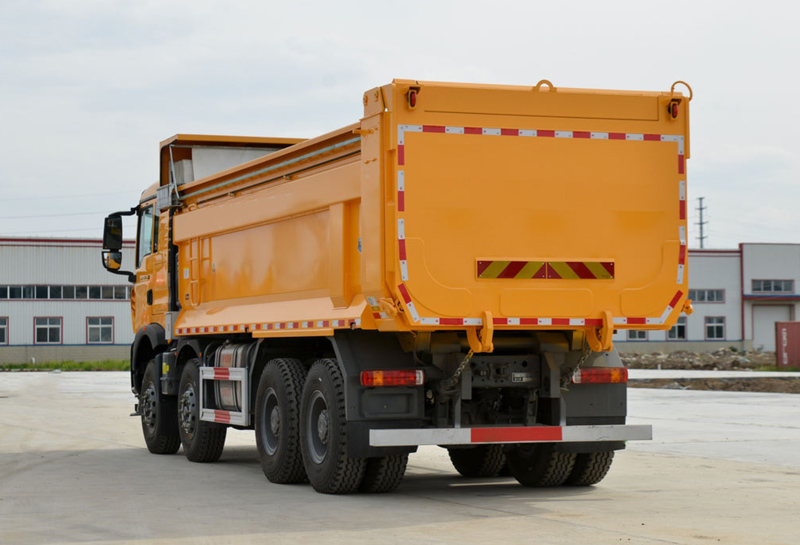

SINOTRUK Howo TX 8x4 Tipper Truck
Production Year 2025, new truck.
Cabin TX-F cab, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver’s seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer,with 4-point support fully floating suspension + shock absorber.
High steel bumper, With inter-cooler fence.
Engine Diesel 4-stroke direct injection diesel engine
Engine model: WD615.47, 371HP
6-cylinder in-line with water cooling, turbo-charging and intercooling
Displacement: 9.726 L
Transmission HW19710, 10F & 2R, with HW50 PTO
Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)
Steering ZF power steering, model ZF8098, hydraulic steering with power assistance
Propeller Shaft Double universal joint propeller shaft with gear-shaped coupling flange
Front Axle VGD95, 9500 KGS
Steering with double T-cross section beam
Rear Axle MCP16ZG, 2*16000KG
Pressed axle housing, central Single reduction with hub reduction and with differential locks between wheels and axles.
Chassis Front suspension:11 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension:11leaf semi-elliptic springs, bogie spring and stabilizer
Brake Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels
Auxiliary brake: engine exhaust brake
Electrics Operating voltage: 24 V, negative grounded
Starter: 24 V, 5.4 Kw
Alternator: 3-phase, 28 V, 1500 W
Batteries: 2 x 12 V, 165 Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Fuel Tank 300L
Tire 12.00R20, Radial (steel wire) Tires. 12+1 Pics
Cargo Body 7300X2300X1700mm, 28.54Cubic Meters
Thickness: Floor 8 mm, Side 6 mm
Front Lifting System
Overall Dimension 11800*2550*3500 mm
Color Optional
