Home>Products> Tractor Trucks

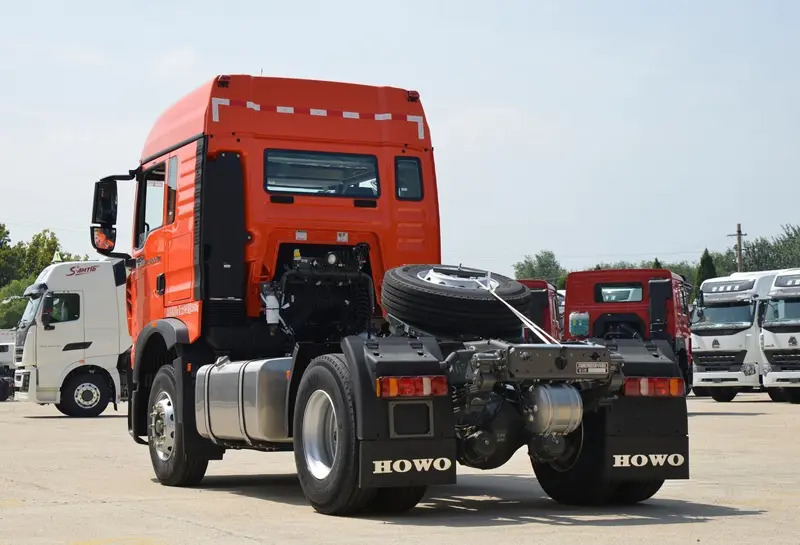

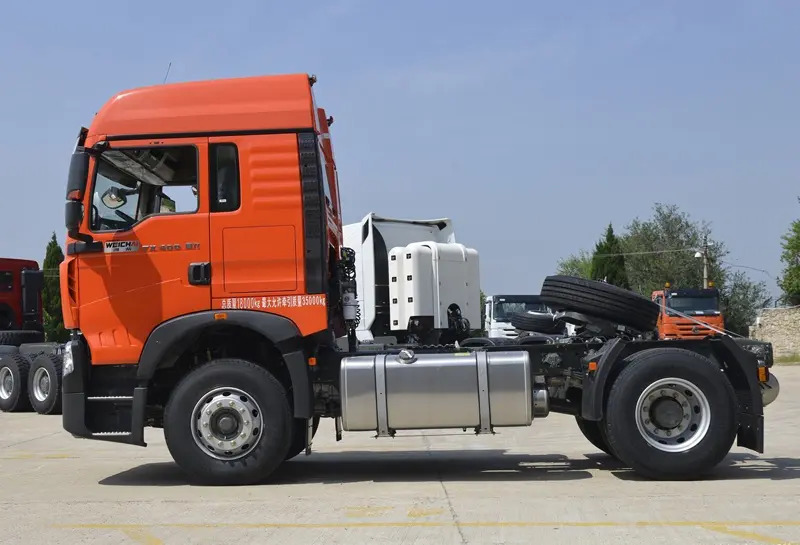

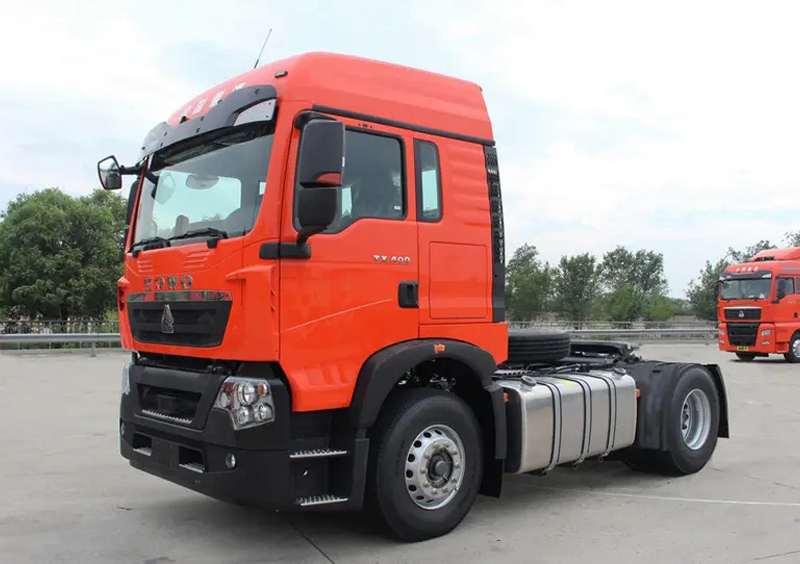

Howo TX 4x2 Tractor Truck

Model: ZZ4187V361GF1

Engine: WD615.47

Horsepower: 371hp

Fuel tank: 400L

Top speed: 89 km/h

Transmission: Sinotruk 12-speed manua

How to choose the right tipper:
1. Confirm what goods to carry to decide the thickness of the bucket.
2. Confirm how many CBM or Tons to carry to decide the bucket size and engine power.

sinotruk@howogroup.com Leave a Message for inquiry

Specification

SINOTRUK Howo TX 4x2 Tractor Truck
Production Year	new truck.
Cabin	TX -F cab.with one sleeper and two seats, with Air Conditioner, 2-arm windscreen wiper system with three speeds, damped adjustable driver’s seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, with transverse stabilizer,with 4-point support fully floating suspension + shock absorber. High Position Steel Bumper
Engine	Diesel 4-stroke direct injection diesel engine Engine model: WD615.47 6-cylinder in-line with water cooling, turbo-charging and intercooling
Transmission	HW19710, 10F & 2R. Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)
Steering	ZF power steering, model ZF8118, hydraulic steering with power assistance
Front Axle	VGD95, 1*9500 KGS Steering with double T-cross section beam
Rear Axle	MCP16ZG, 2*16000KGS Pressed axle housing, central Single reduction with hub reduction and with differential locks between wheels and axles.
Propeller Shaft	Double universal joint propeller shaft with gear-shaped coupling flange
Chassis	Front suspension: 10 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension: 12 leaf semi-elliptic springs, bogie spring and stabilizer
Brake	Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake.
